Product Description:

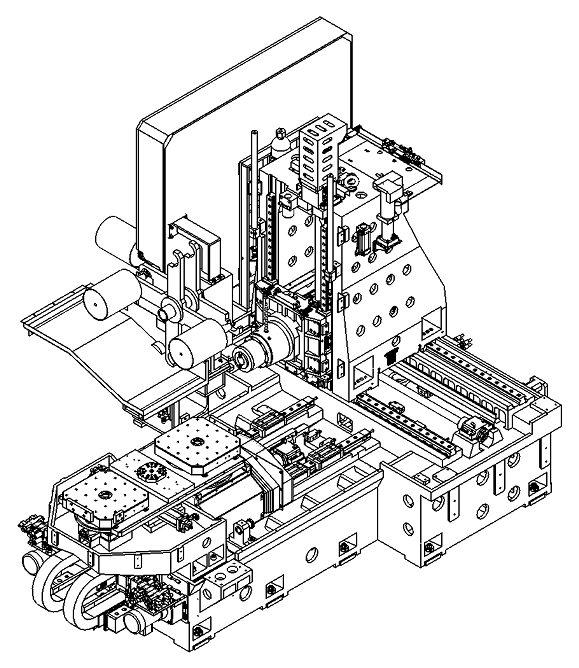

The HMC800 horizontal machining center adopts a positive T-shaped structure, an integral base, a large-span double-layer wall column, and the three axes are equipped with heavy-duty roller guides, resulting in high overall structural rigidity of the machine tool. The machine tool uses a forced cooling system for the lead screw bearings and a forced cooling system for the belt spindle, which effectively ensures the accuracy stability of the machine tool. The machine tool is standardly equipped with a double-pallet automatic workpiece exchange system, which can be used for batch multi-sided machining of parts such as boxes, discs, plates and shells, and machine bases. It is also suitable for the finishing of various molds.


Technical Specifications:

Item

HMC800

Movement









X-axis(mm)

1350

Y-axis(mm)

1100

Z-axis(mm)

1120

Distance from Spindle End to Worktable Center (mm)

200-1320

Distance from Spindle Center to Top of Pallet (mm)

75-1175

Worktable and Pallet



















Worktable Size (mm)

800×800

Worktable Indexing (Deg)

360×1°(Optional 360×0.001°)

Worktable Type

M16

Worktable Load Capacity (kg)

2000

Maximum Workpiece Size, Rotation Diameter (mm)

Ф1200,H1300

Pallet Exchange Type

Rotary

Pallet Exchange Time (s)

25

Number of Pallets

2

Spindle











Spindle Speed (r/min)

6000

Spindle Power (kW)

22/26(FANUC)、22(SIEMENS)

Spindle Torque (Nm)

560/664(FANUC)、560(SIEMENS)

Taper Hole

BT50

Spindle Cooling

Forced Cooling

Spindle Cooling Water Outlet Form

End Face Ring Spray, Optional: Center Water Outlet

Feed













Guide Rails

Roller Linear Guide Rails

Feed Motor X/Y/Z(kW)

7/7/7(FANUC)、7.1/7.1/7.1(Siemens)

Rapid Feed Speed X/Y/Z(m/min)

32/32/32

Cutting Feed Speed X/Y/Z(mm/min)

12000

Lead Screw Diameter  X/Y/Z(mm)

50/50/50

Lead Screw Bearing Cooling

Forced Cooling

Three-axis Grating

Optional

Tool



















Tool Capacity (Number of Tools)

60

Tool Change Method

Mechanical Hand

Tool Selection Method

Bidirectional

Maximum Tool Weight (kg)

25 (The distance from the center of mass to the end face of the tool holder should be less than 100mm)

Maximum Tool Diameter (mm) (Full Tool/Adjacent Empty)

125/240

Maximum Tool Length (mm)

400

Tool Holder Type

MAS403 BT50

Pull Stud Type

MAS403 P50T-1(45°)

Tool Change Time(T-T)(s)

6

Accuracy











Positioning Accuracy (mm)

0.012

Repeat Positioning Accuracy(mm)

0.009

Positioning Accuracy with Grating Scale (mm)

0.010

Repeat Positioning Accuracy with Grating Scale (mm)

0.006

Worktable Indexing Positioning Accuracy(arcsec)

14

Worktable Repeat Indexing Positioning Accuracy (arcsec)

8

Others











Numerical Control System

FANUC 0i-MF(3)or Siemens 828D System

Air Source (MPa)

0.6-0.8

Cutting Fluid Tank Capacity (L)

600

Power Supply (kW)

80

Overall Dimensions of Machine Tool (mm) (Excluding Foot Pedals, Chip Conveyor, Chip Collector, Hydraulic Station, etc.)

6700×4800×3900

Machine Tool Weight (kg)

25000
