BHR800V watch video
Product Description:

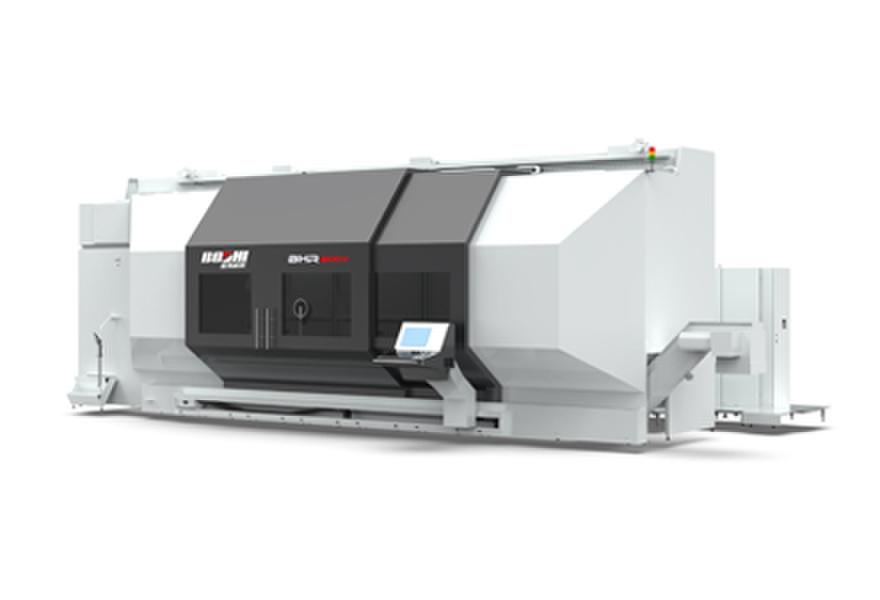

BHR800V series is a 5-axis horizontal turning milling compound machining center. The machine is equipped with X, Y, Z, B, C five axes, which can realize various turning, milling, boring, drilling, gear milling, grinding and other composite processing; It is especially suitable for high precision machining, deep hole machining and heavy parts processing with small straightness, cylindricity, parallelism and runout. The company is committed to the analysis of complex parts processing requirements, the development of relevant accessories for each user to provide customized effective overall solution.


Technical Specifications:

Items

BHR800V

Turning diameter (mm)

820

Distance between centers (mm)

2000/3000/4000/5000/6000

Max. workpiece weight(kg)

3500

Spindle

Main motor power 100% (kW)

22+22/27+27/30+30

Maximum chuck speed (rpm)

2700/1680

maximum torque 100% (Nm)

3340/5400

Standard chuck diameter (mm)

315/400/500/630

Bearing diameter(front) (mm)

160

Spindle thru-hole(mm)

100

Spindle nose(DIN 55026)

A11

C axis

Max.speed (rpm)

80

Max.output torque (Nm)

4000

Milling head

Milling motor power (kW)

27/30

Speed(rpm)

5000

Max.torque S1(100%) (Nm)

261/291

Tool shank

HSK-A63/CaptoC6

Bearing diameter (front)(mm)

100

inner-cooling pressure (bar)

70

B axis

Max.speed(rpm)

16

Max.torque (Nm)

1780

Indexing Angle of rat tooth disc (º)

2.5

Minimum indexing Angle (º)

0.001

Angular range (º)

-110/+90

X axis

Rapid travel speed(m/min)

40

Max.feed force (N)

1305/2700

Traverse (mm)

930

Y axis

Rapid travel speed(m/min)

40

Max.feed force (N)

1450

Traverse (mm)

400/550

Z axis

Rapid travel speed(m/min)

40

Max.feed force (N)

1200/2880

Tailstock

Quill diameter (mm)

180

Quill traverse (mm)

200

Tool capacity

40/60/80/120

CNC control system

Siemens 840D SL
